Raspberry Pi 4B/3B+/3B/Zero 1.44 inch LCD Hat 3.3V 128x128 SPI Interface Screen LED Backlight Display with Joystick

Introduction :

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.
If you want to add a control interface for your Raspberry Pi , this compact display would be the ideal choice.

Features :

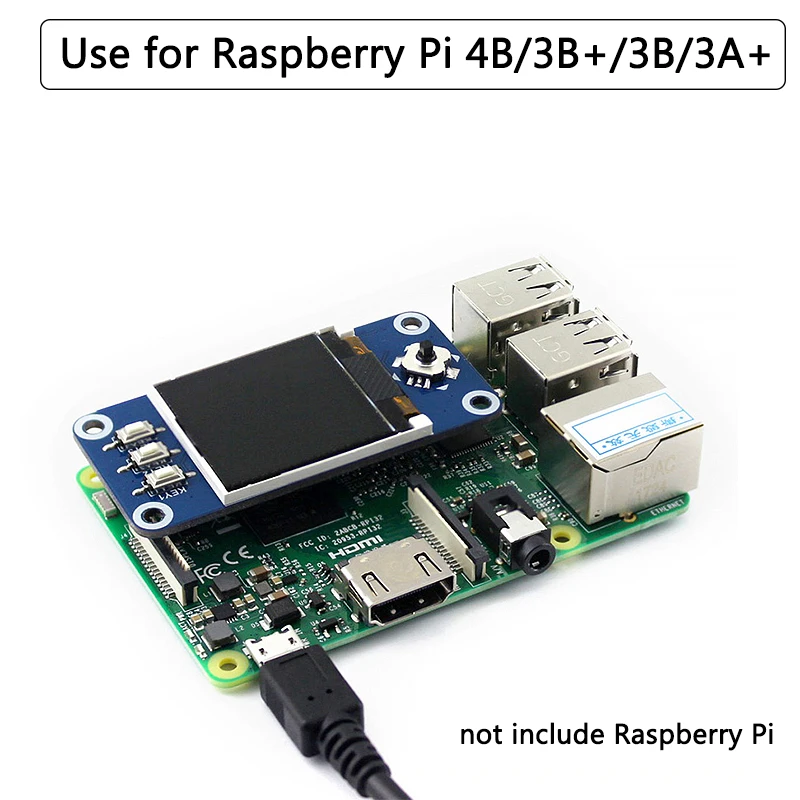

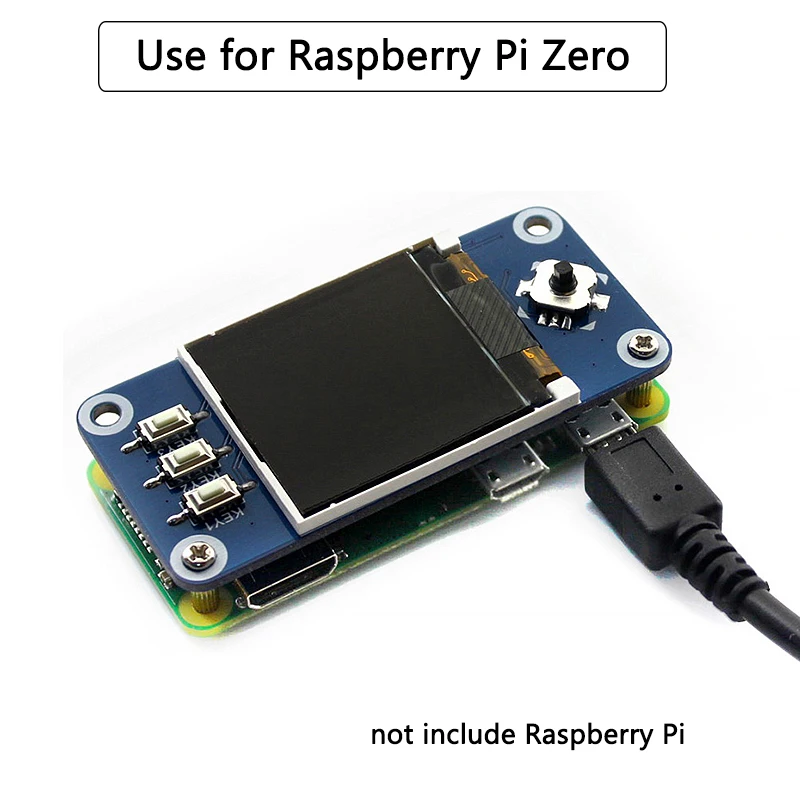

1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
2. 1x joystick (5-position), 3x pushbuttons, handy and useful
3. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications :

Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 128x128
Backlight: LED
Operating voltage: 3.3V

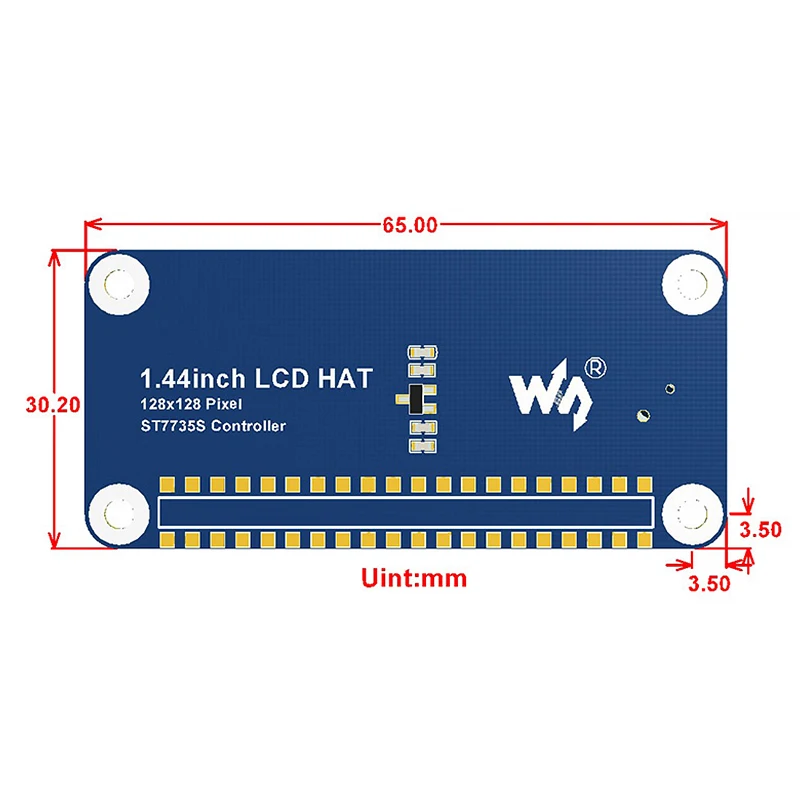

Size :

Packing list :

1 x 1.44 inch LCD

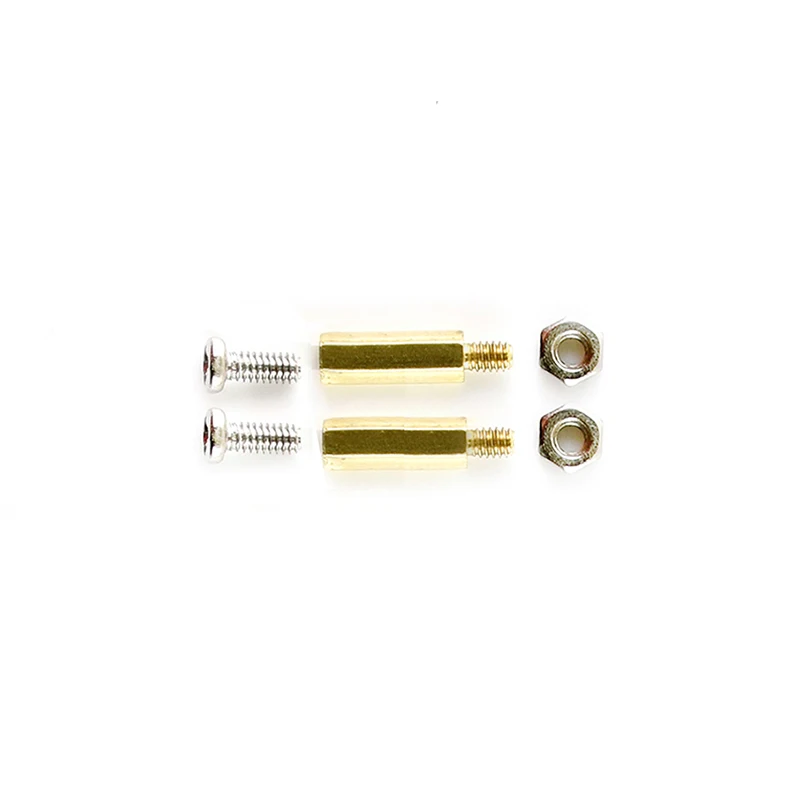

1 x Screws and Nuts Set
(not include Raspberry Pi)

How to USE :

Please refer to :
www.waveshare.com/wiki/1.44inch_LCD_HAT

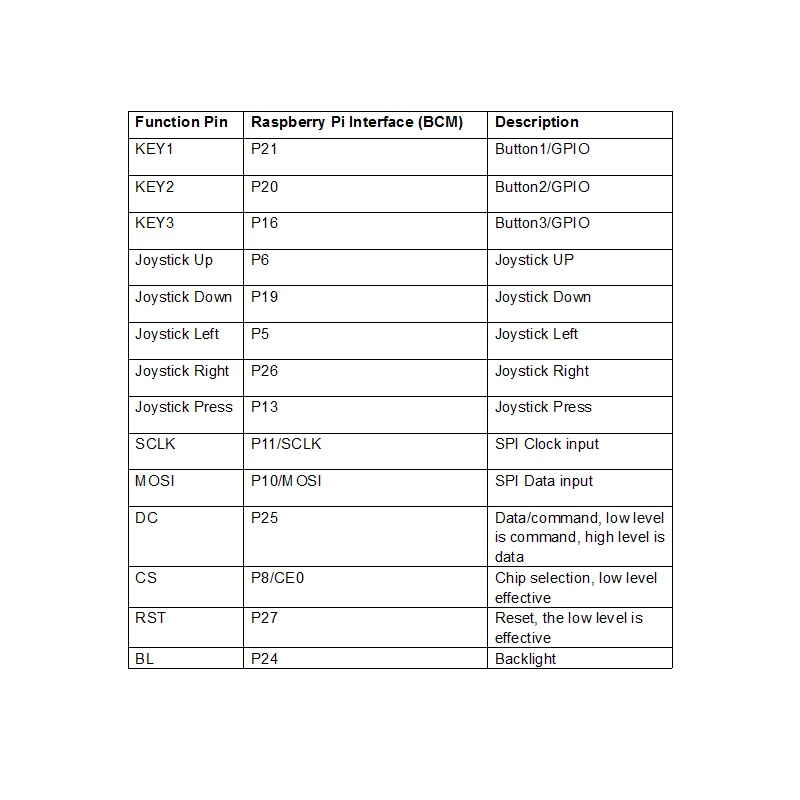

Pins Functions :
