Raspberry Pi 4 LCD 2.4 Inch Touch Screen 320 × 240 Pixel Display SPI Interface TFT Screen for Raspberry Pi Zero 2 W A+ B 3B+

Features:

*2.4inch standard display with physical resolution of 320×240

*SPI interface with resistive touch screen for touch control

*Perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+)

*Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents

*This product has passed CE and RoHS certification

Parameters:

Screen Size：2.4inch

LCD Type ：TFT

Module Interface：SPI

Resolution：320*240 (Pixel)

Active Area：36.72x48.96(mm)

Touch Screen Controller：XPT2046

LCD Driver IC：ILI9341

Backlight：LED

Power Consumption：0.08A*5V

Operating Temperature（℃）：-20~60

Module PCB Size：56.00x65.00(mm)

Rough Weight(Package containing)(g)：37 (g)

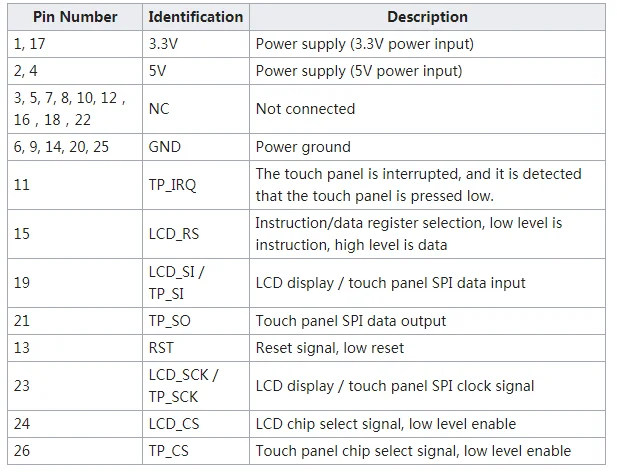

Interface Definition:

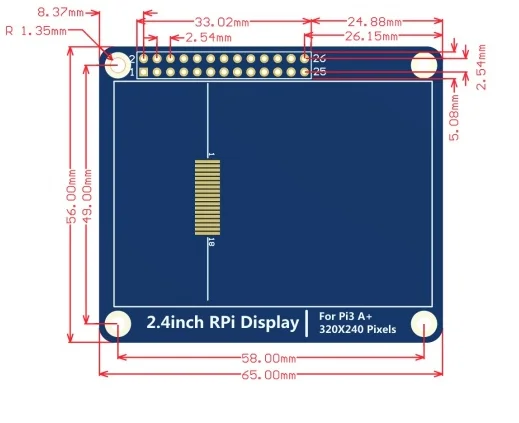

Product Size:

Package List:

1 × 2.4inch Touch Screen

(Don't include the Raspberry Pi Board)
