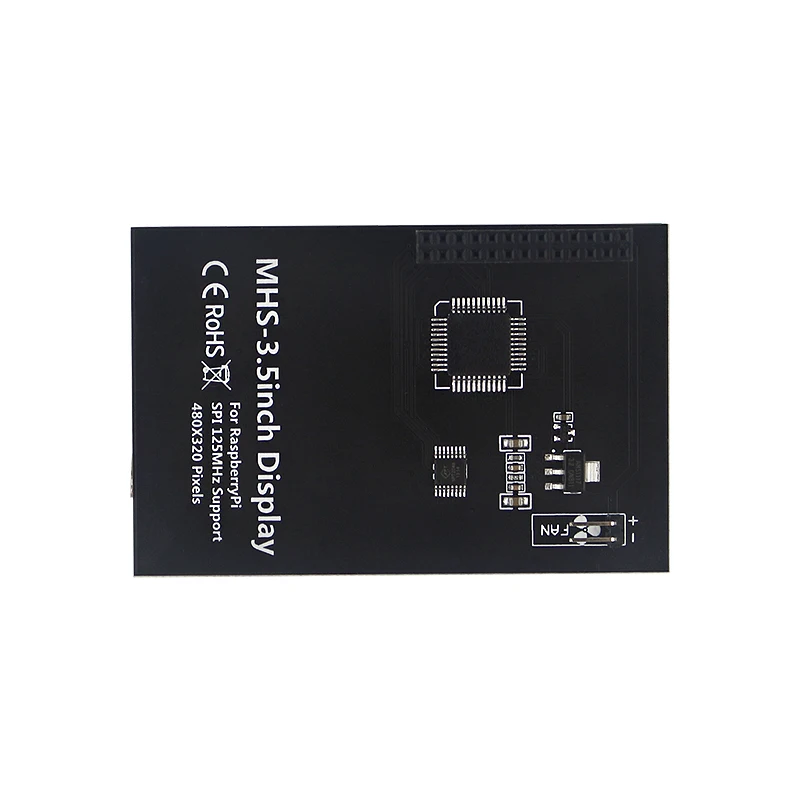

3.5 inch Touch Screen for Raspberry Pi 4B 125MHz SPI LCD Display for Raspbian/Ubuntu/Kali/Retropie

Introduction

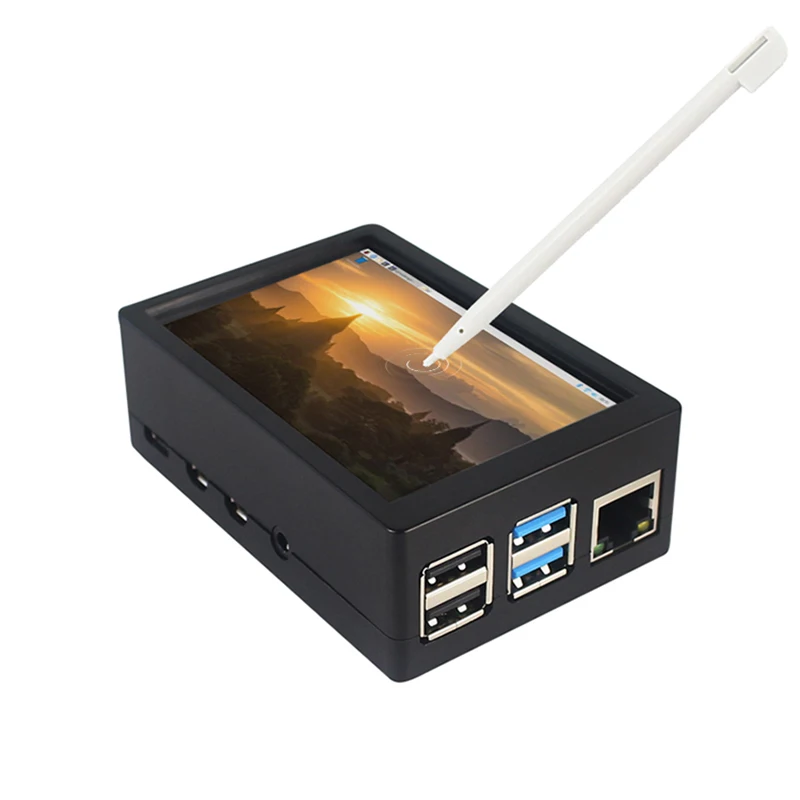

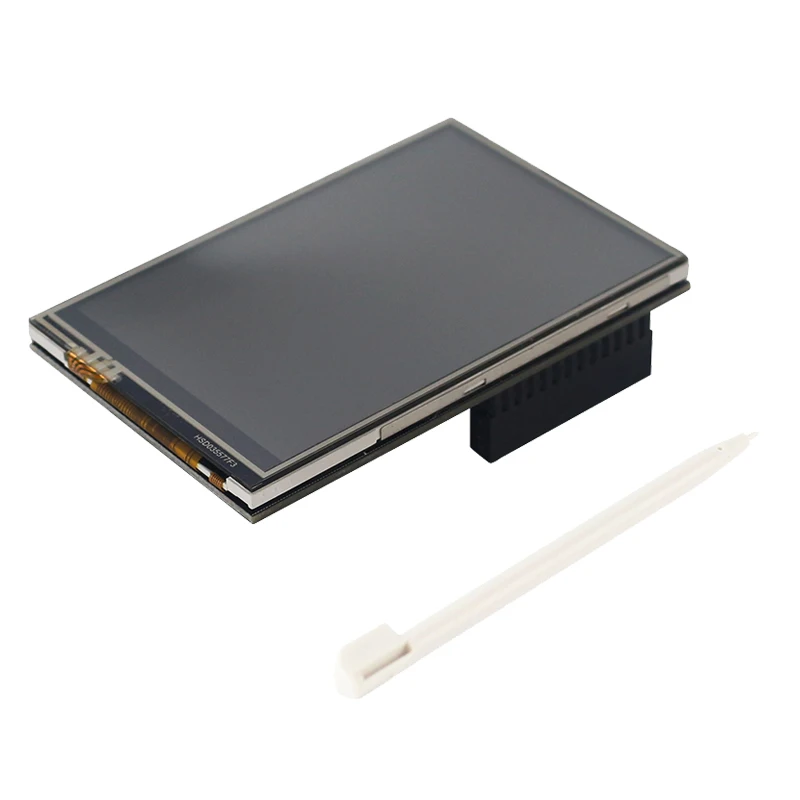

This is the 3.5inch touch screen for Raspberry Pi. It is the SPI screen , up to 125MHz , so it can be used to play games and watch video fluency. The screen use resistive touch way , provide the touch pen.
The screen supoort all version of Raspberry Pi (4B/3B+/3B/2B/Zero/A+) , compatible for Raspbian/Ubuntu/Kali/Retropie system , but need to configure the system before use.(provide the metod in description and user manual)

Features

1. Physical resolution 320 x 480 with resistive touch control
2. It supports up to 125MHz SPI signal input, showing stable no screen and no flicker

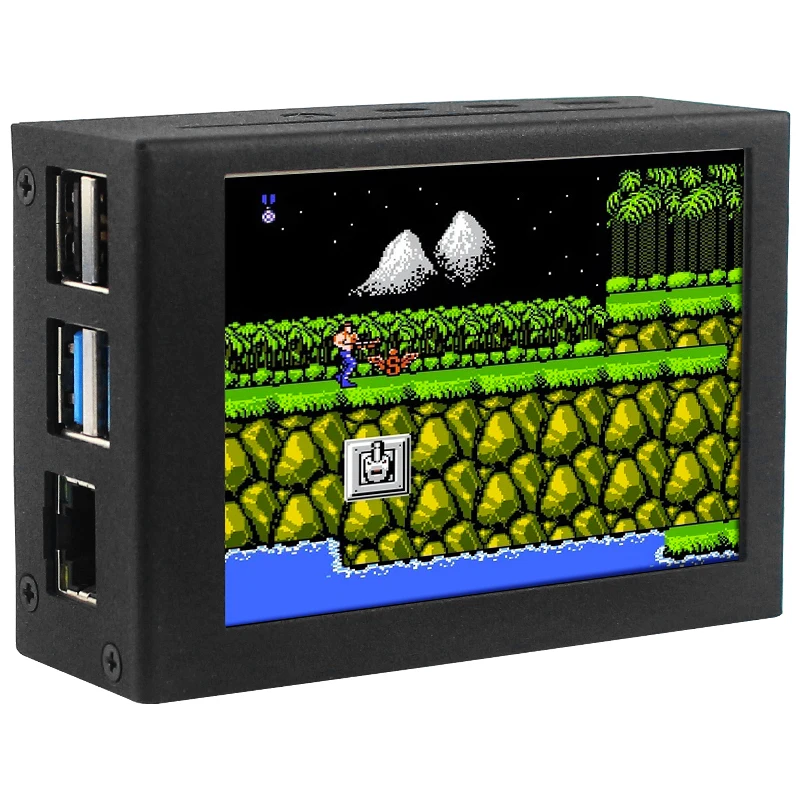

3. With the refresh rate of raspberry pi around 50Hz, play video to play the game without pressure
4. Support FBCP software drive, support double screen display, can adjust the resolution of the software to zoom

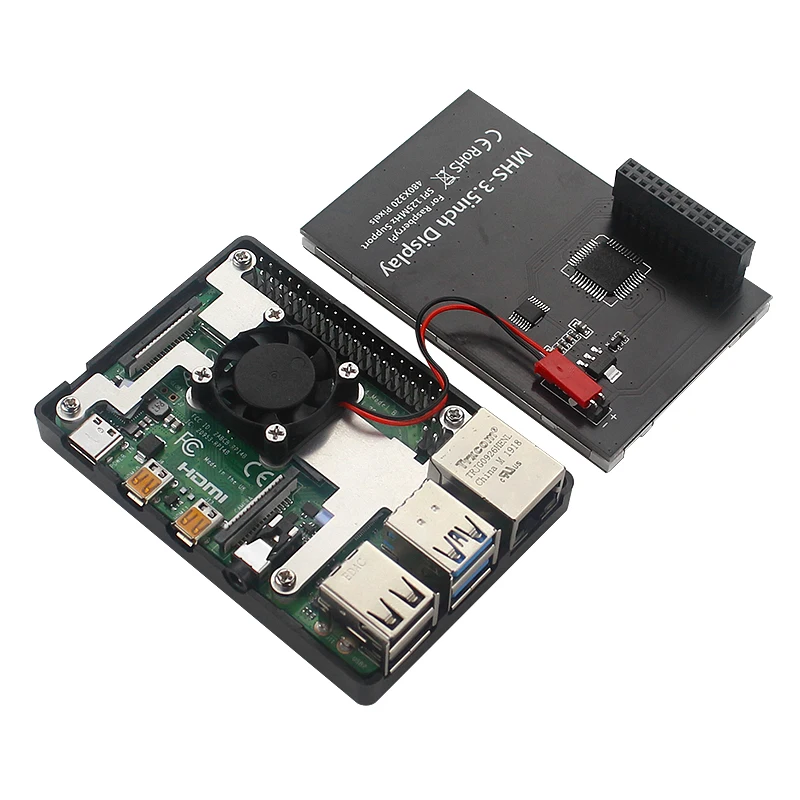

5. Same size as the Raspberry Pi, perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+,4B)
6. Support Raspbian/Ubuntu/Kali system, provide driver and image(Please use our recommended system for touch screen. If you use other systems, it may not have touch function or may not work. You need to configure it yourself. Because there are many systems that the Raspberry Pi can use, we can’t make every system compatible with our touch screen.)

Specificatoins

Screen Size : 3.5inch
LCD Type : TFT
Module Interface : SPI (upports up to 125MHz SPI input)
Resolution : 320*480 (Pixel)
Touch Screen Controller : XPT2046
LCD Driver : ICILI9486
Backlight : LED
power consumption : 0.16A*5V
Working temperature（℃） : -20~60

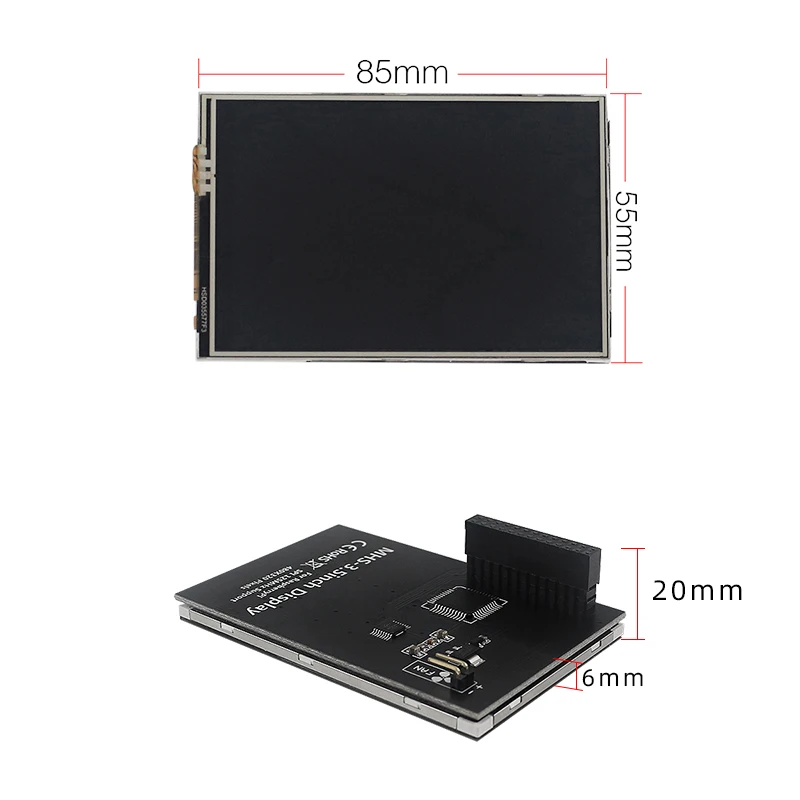

Module PCB Size : 85.42*55.60 (mm)

How to Use :

Please refer to these link to use the screen :
http://www.lcdwiki.com/MHS-3.5inch_RPi_Display
If you have any problem , please contact us at first time.

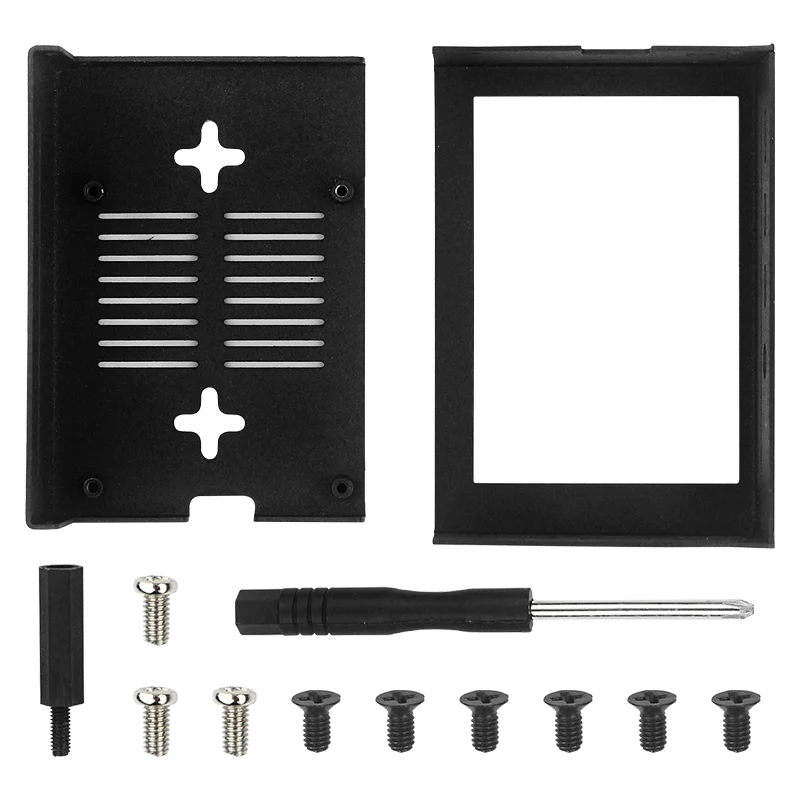

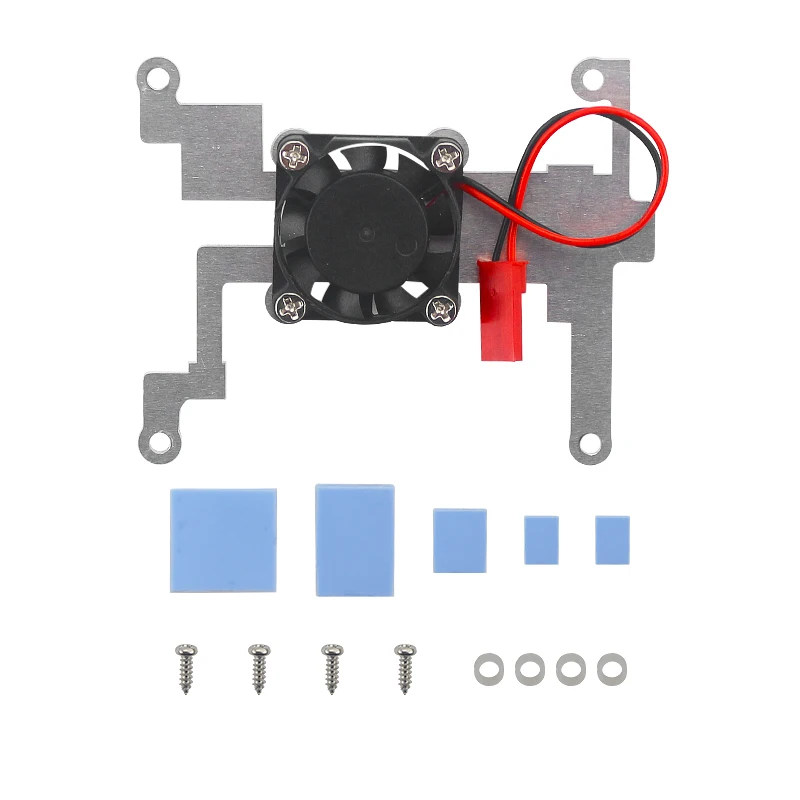

Packing Llist :
