SPECIFICATIONS

Brand Name: SmartYIBA

Connection Method: WIRED

Camera Sensor type: CMOS

Origin: Mainland China

Answering Mode: Hands-free

Display Size: 7

Display Screen Type: Color Touch Screen

Zone Input: None

Kit Configuration: One to Two video doorphone

Access Control: None

Type: Intercom System

Waterproof: Yes

Material: Anti-oxidation aluminium alloy panel

Smart home platform: NONE

IP Camera Interface: No

Samrt Home Interface: Yes

Installation: Wall Mounting

Resolution: 1000

Connection Type: WIRED

Certification: CE

Plug Type: EU plug

Plug Type: US plug

Plug Type: AU Plug

Plug Type: UK Plug

Power: 11V-240v

Model Number: 815MC12lock

Sensor Size(Inch): 1/4

Camera: color

Power: 220v

Viewing Angle (°): 92

Size: 7inch

Doorbell: Yes

Technology: DIGITAL

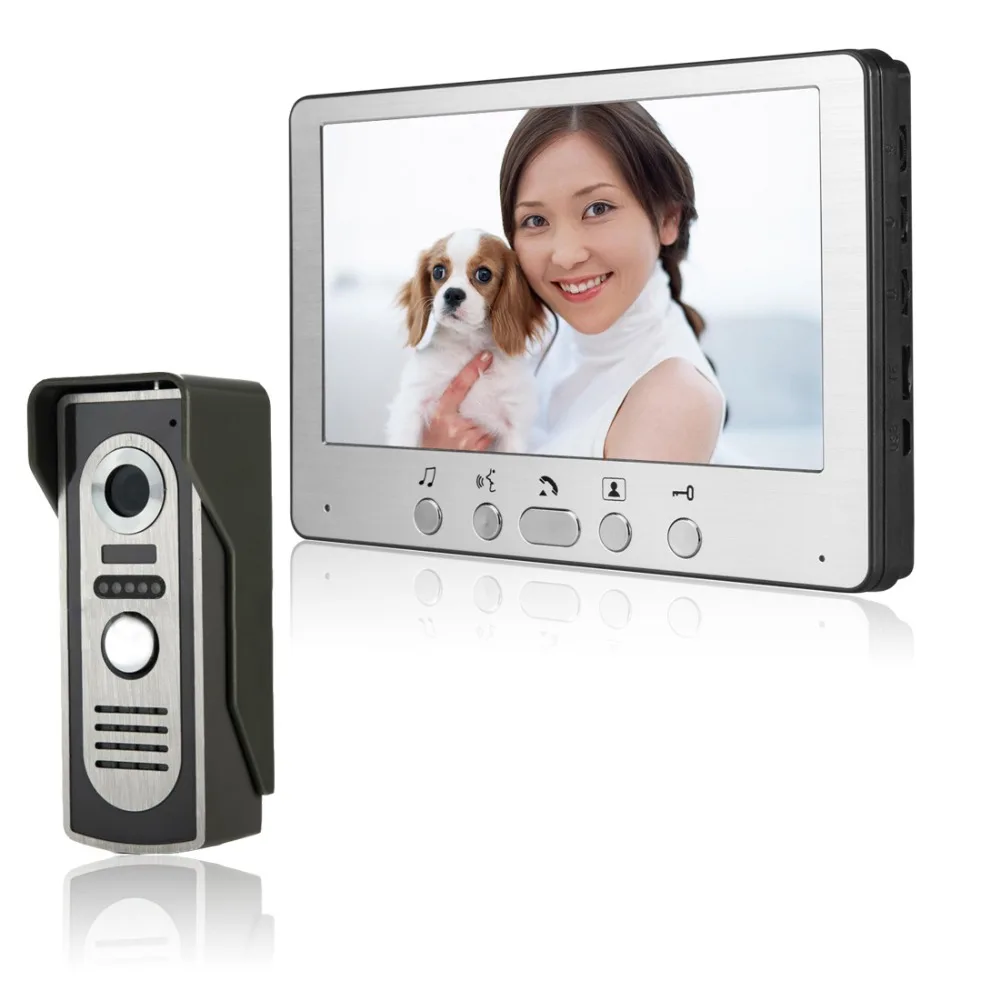

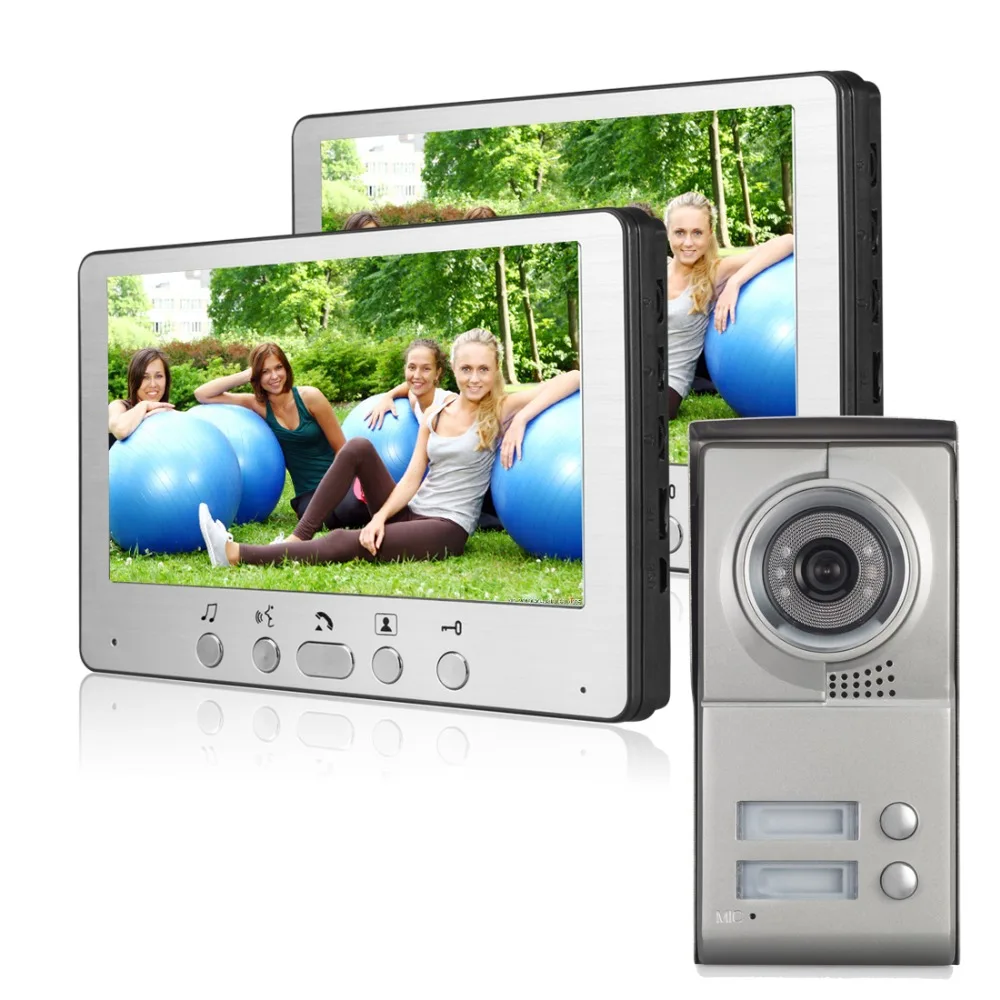

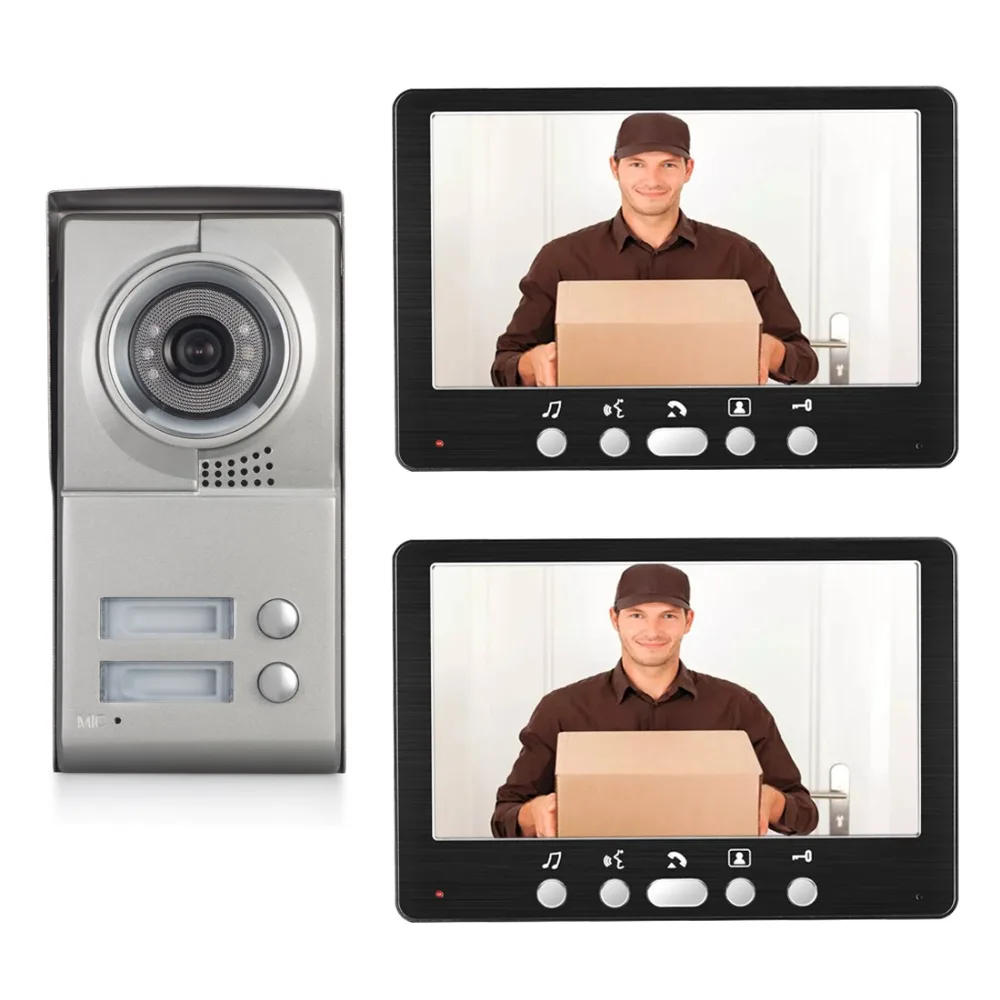

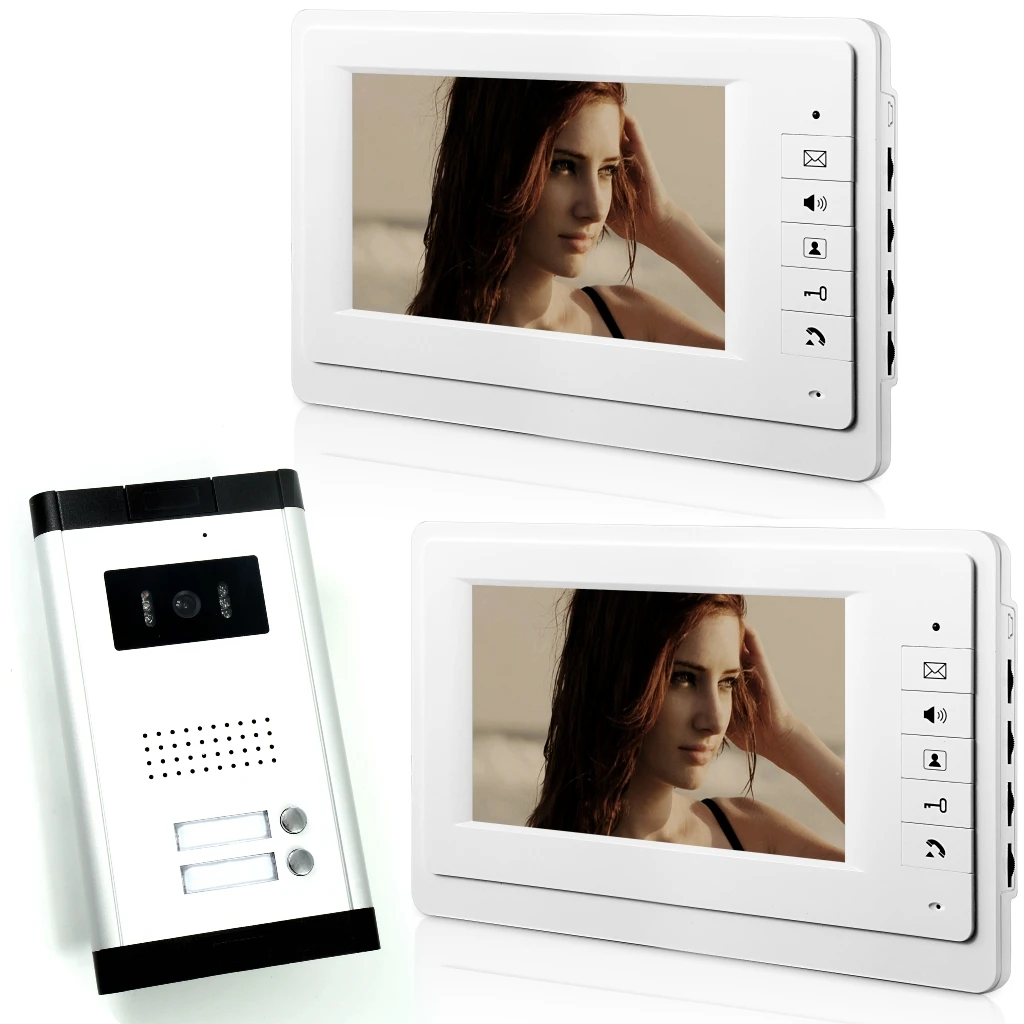

7" Color Hands Free Video DoorphoneMulti-apartment video intercom system

Functional characteristics

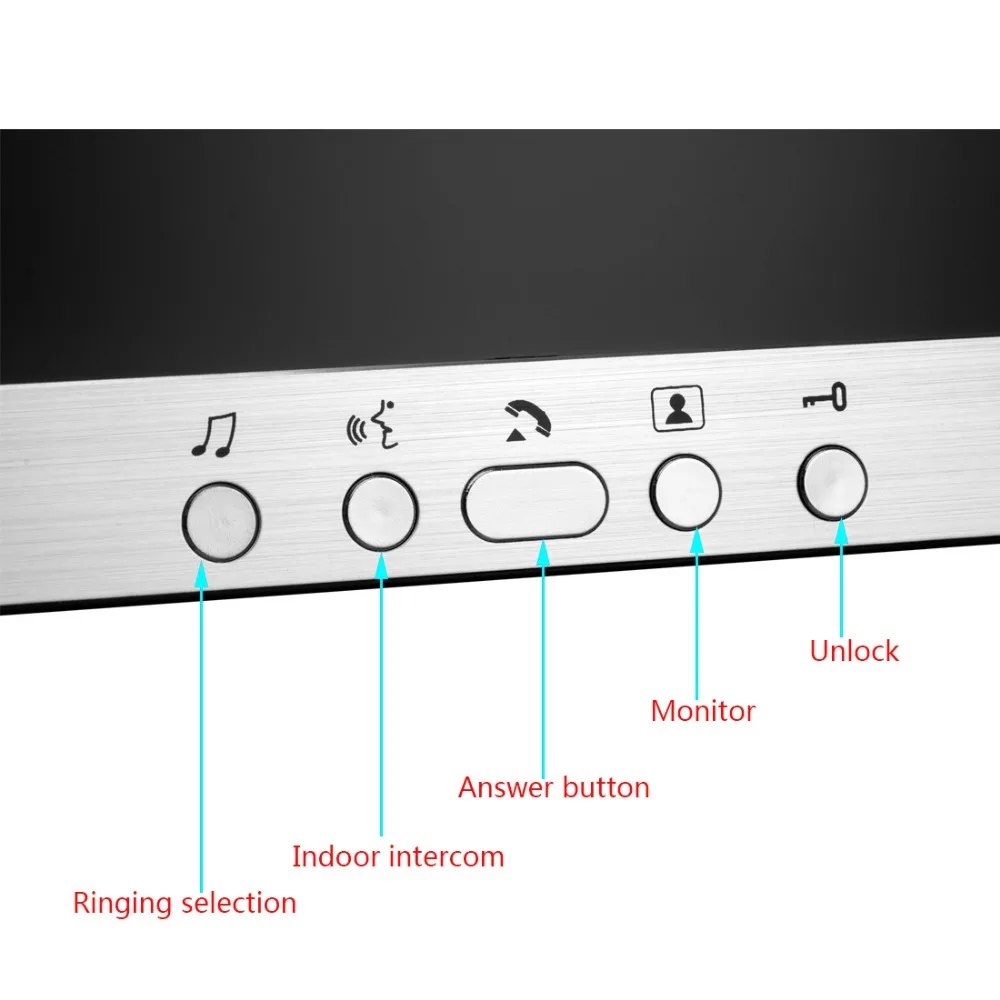

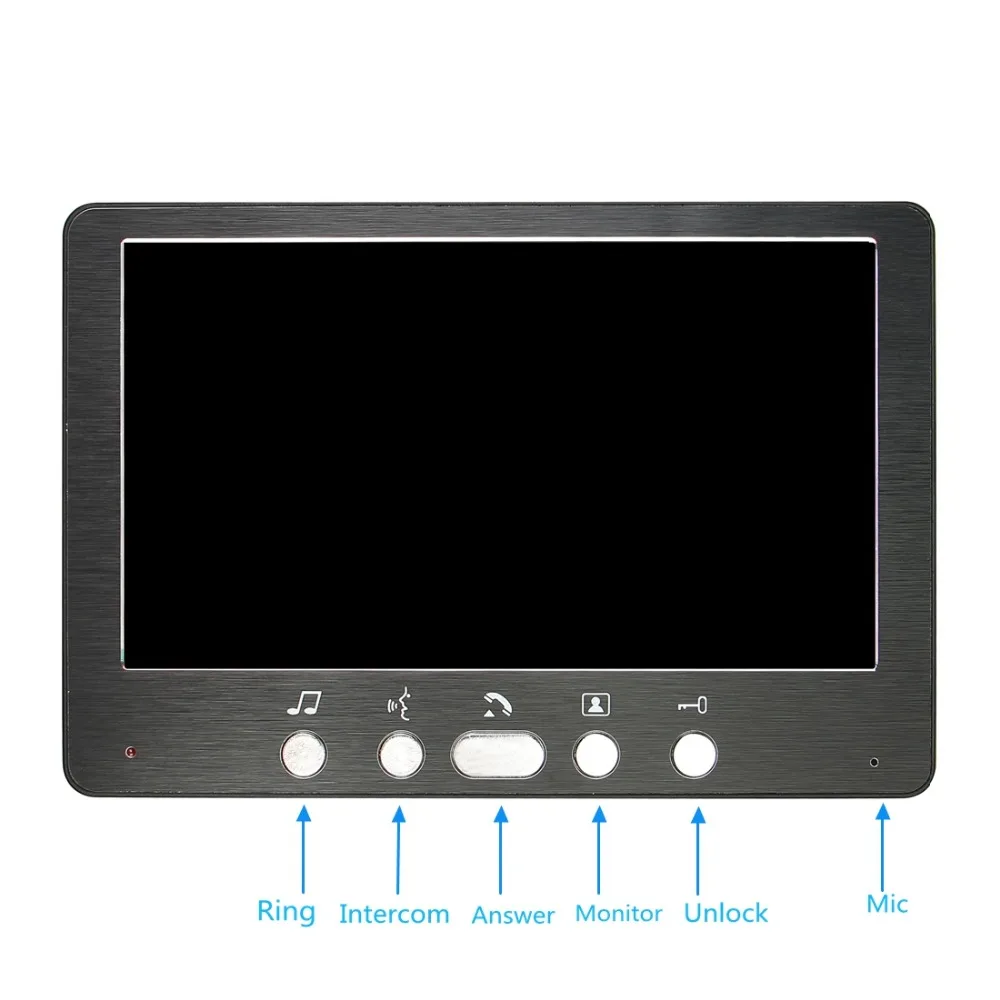

With monitoring, intercom, lock, bell, indoor intercom, volume, brightness, color adjustment function

1.7 inch TFT LCD, no radiation, low power consumption, wide screen high definition image]

2.hands-free intercom function

3.electric control unlocking function

4.there is the function of monitoring the outdoor

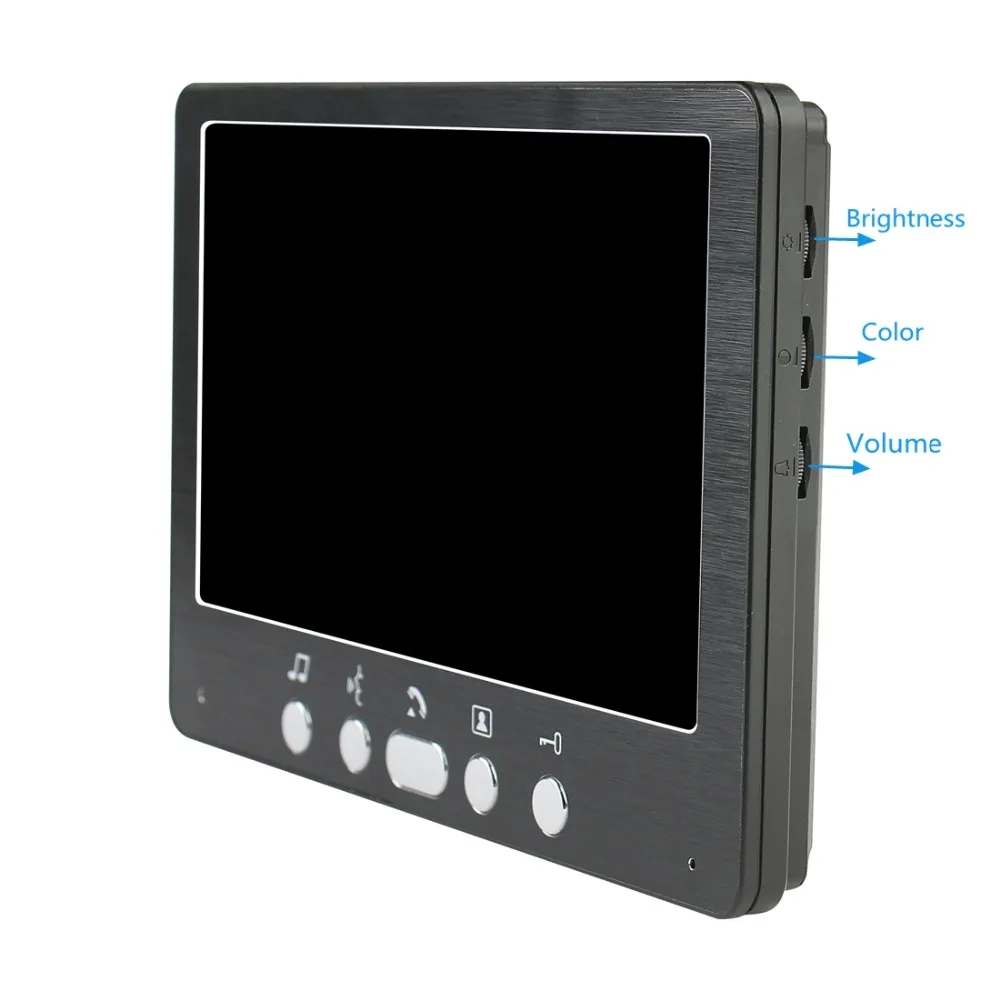

5, image brightness, chroma, ring volume, intercom volume can be adjusted

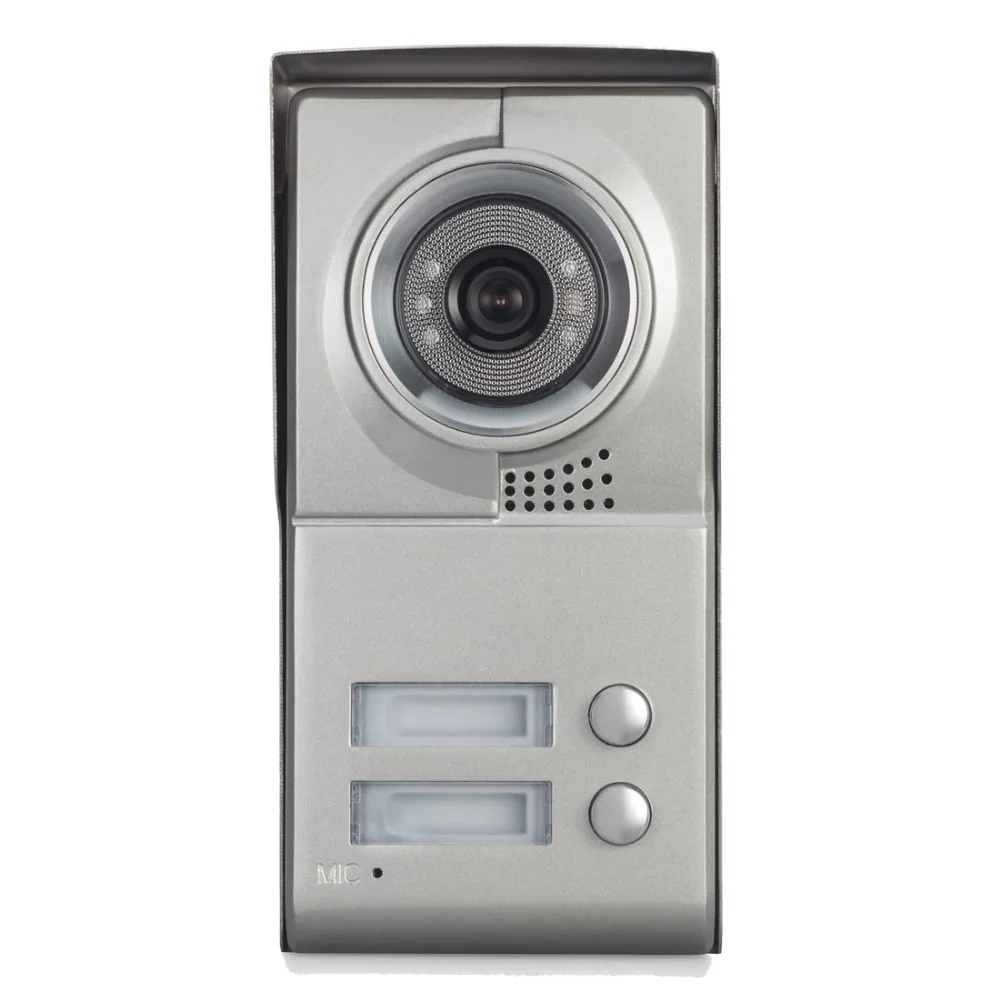

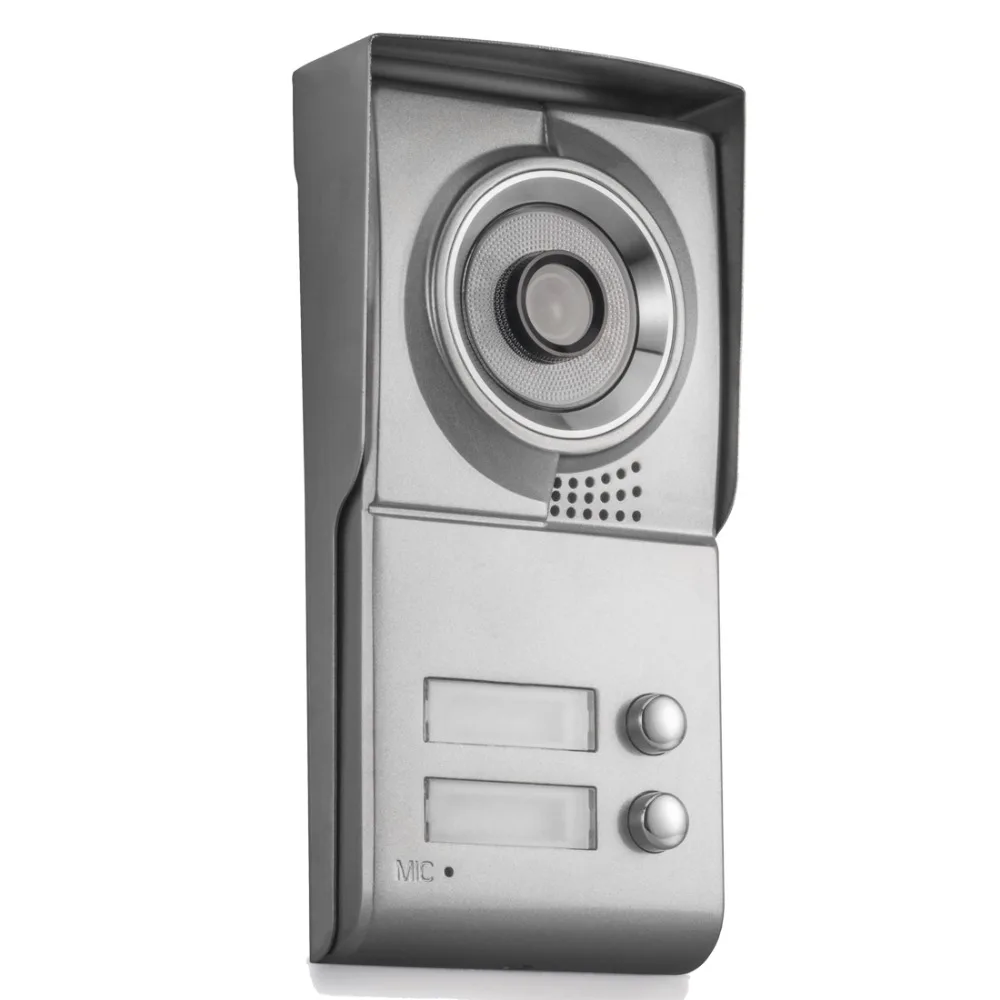

6, anti alumina panel and wear-resistant surface treatment of the outdoor machine, camera HD 700 lines

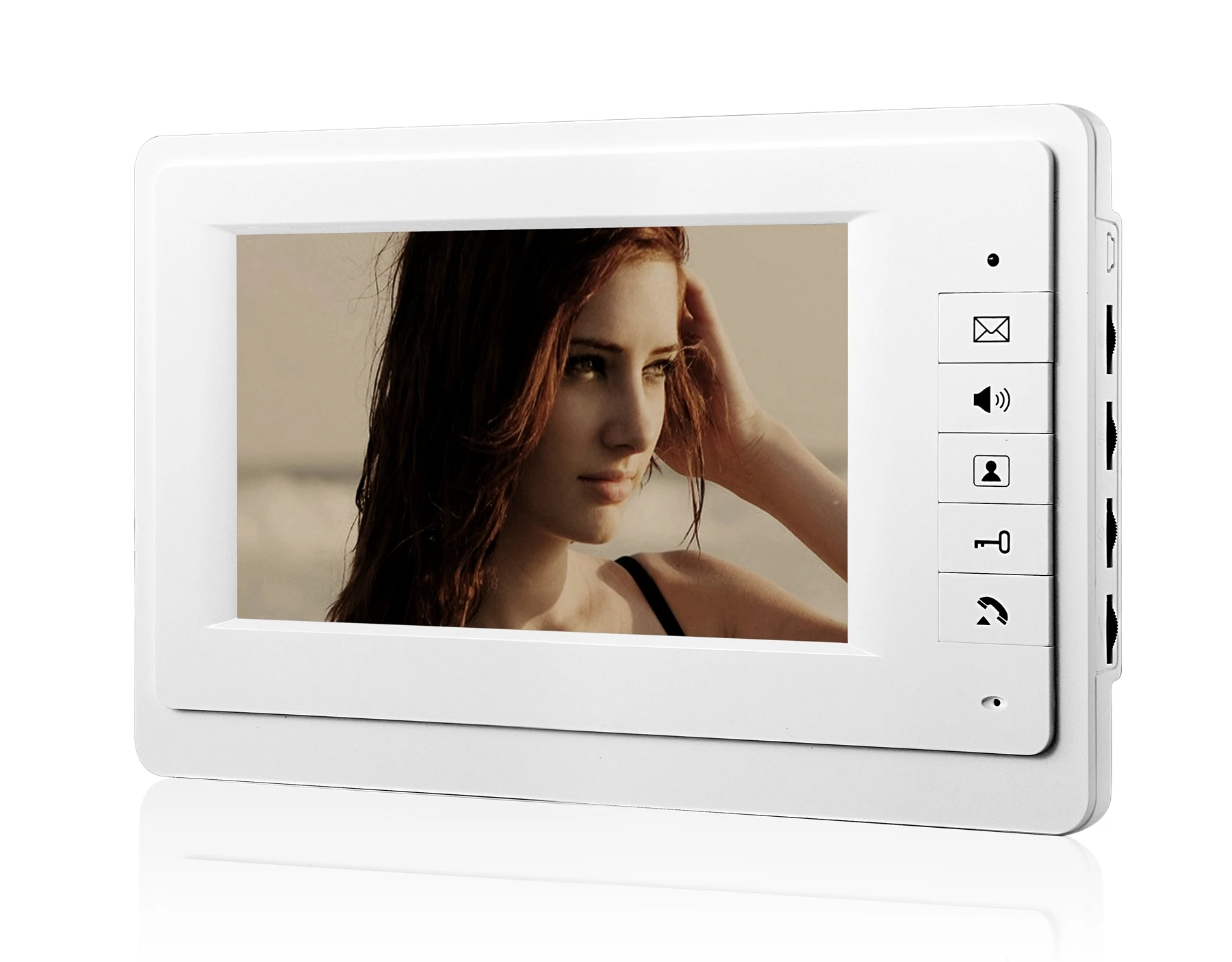

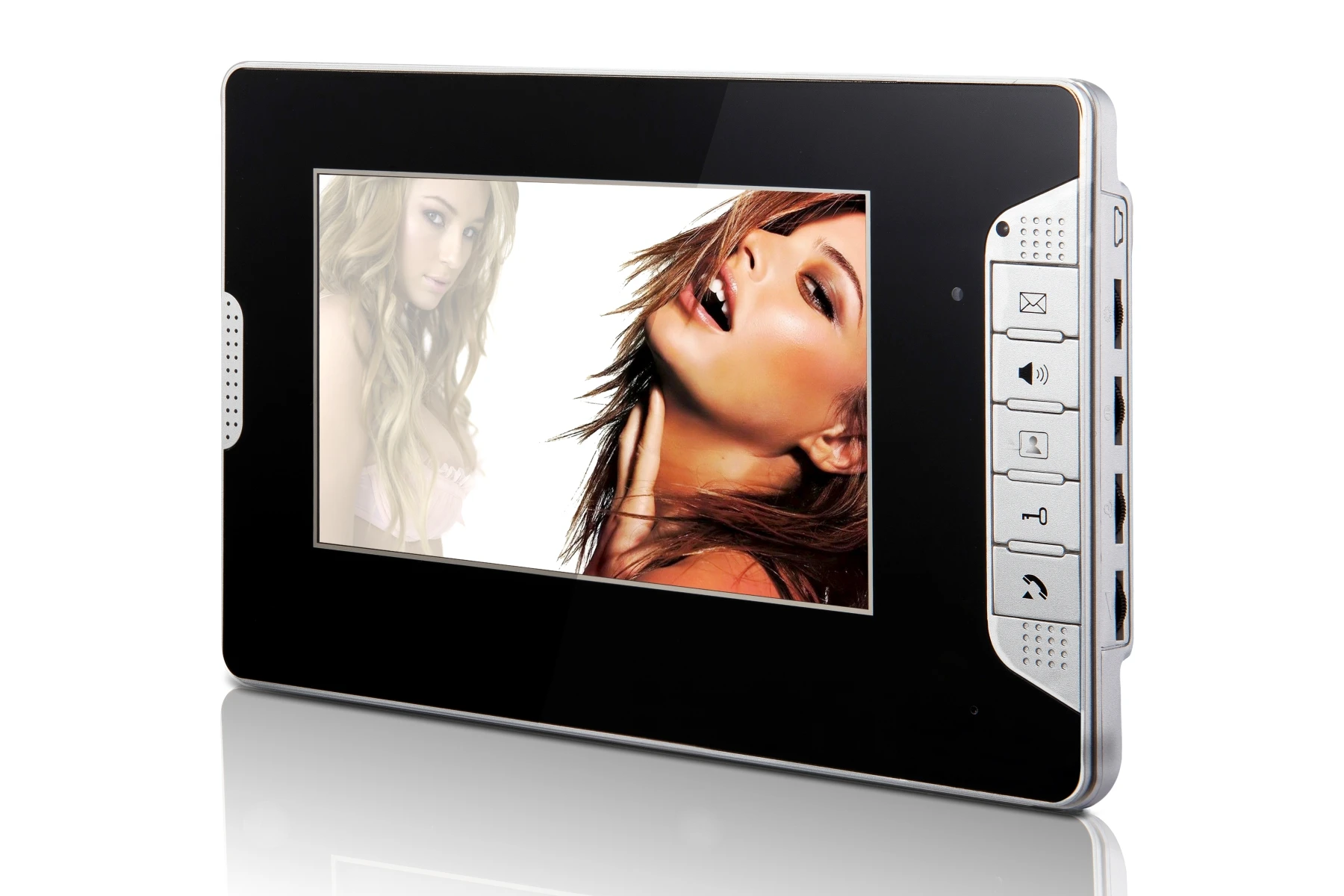

7, indoor machine ultra-thin aluminum panel design, beautiful and luxurious style

8, 16 kinds of chords optional, will not always hear the monotonous door bell

Performance parameters:

1.switching power supply: AC220V - 50Hz DC15V 5A integrated power supply/or two separate power supply, optional. Users can be equipped with battery

2.machine current: less than 800mA

3.call delay time: 120S ± 10%

4.the monitoring delay time: 60S ± 10%

5.the camera sensor: SHARP1/4 CCD

6.Lens: 3.6MM92 degrees

7.Screen: 7" TFT

8.Resolution: 800 * 480

9.outdoor unit with night vision function

8.the indoor unit dimensions: (H)180×(W)120×(D)35mm

10.the outdoor unit Dimension:308×132×50mm

Installation: wall-mounted.

Material: Zinc Alloy

11.indoor and outdoor installation: Wall

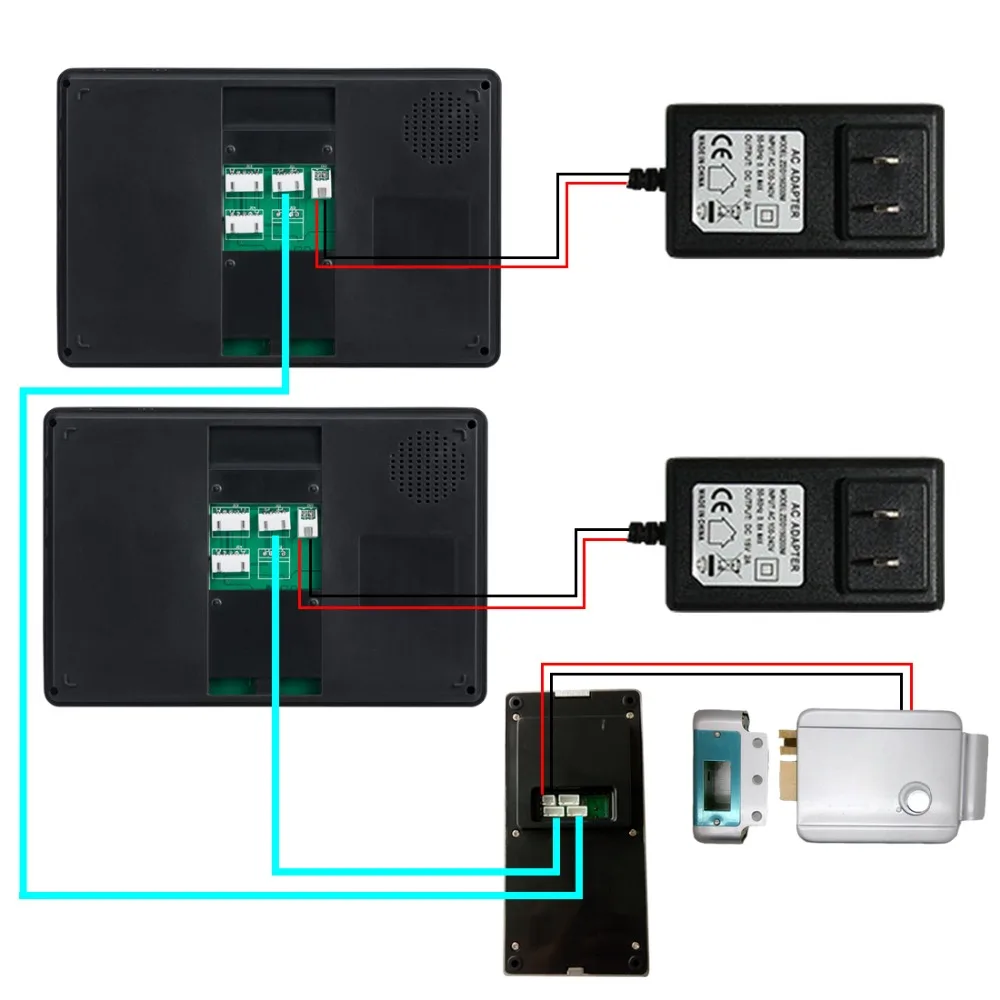

12.cable: 4 wires (5 supporting noodle 3) +2 wire lock line (supporting terminal line of an outdoor unit is connected)

>>>Package contents:

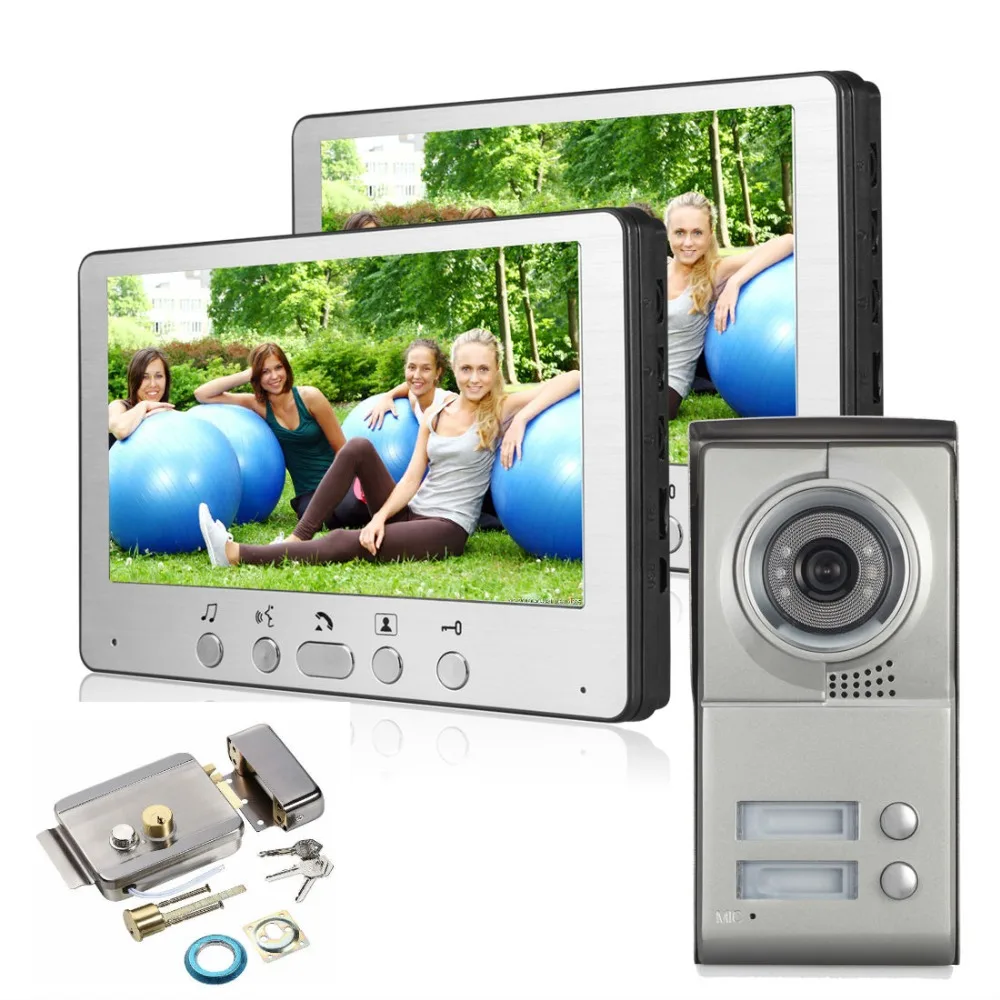

A KIT

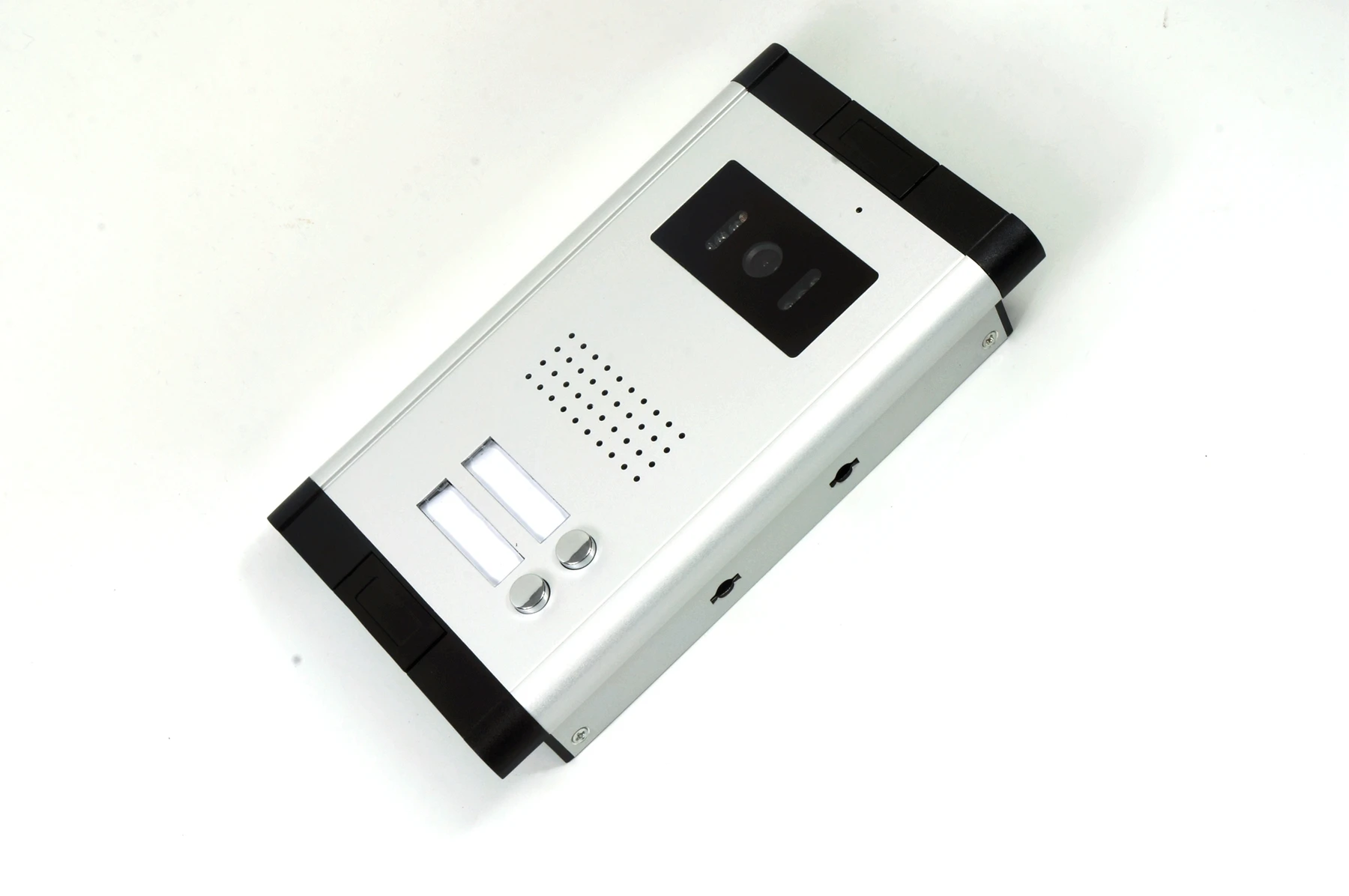

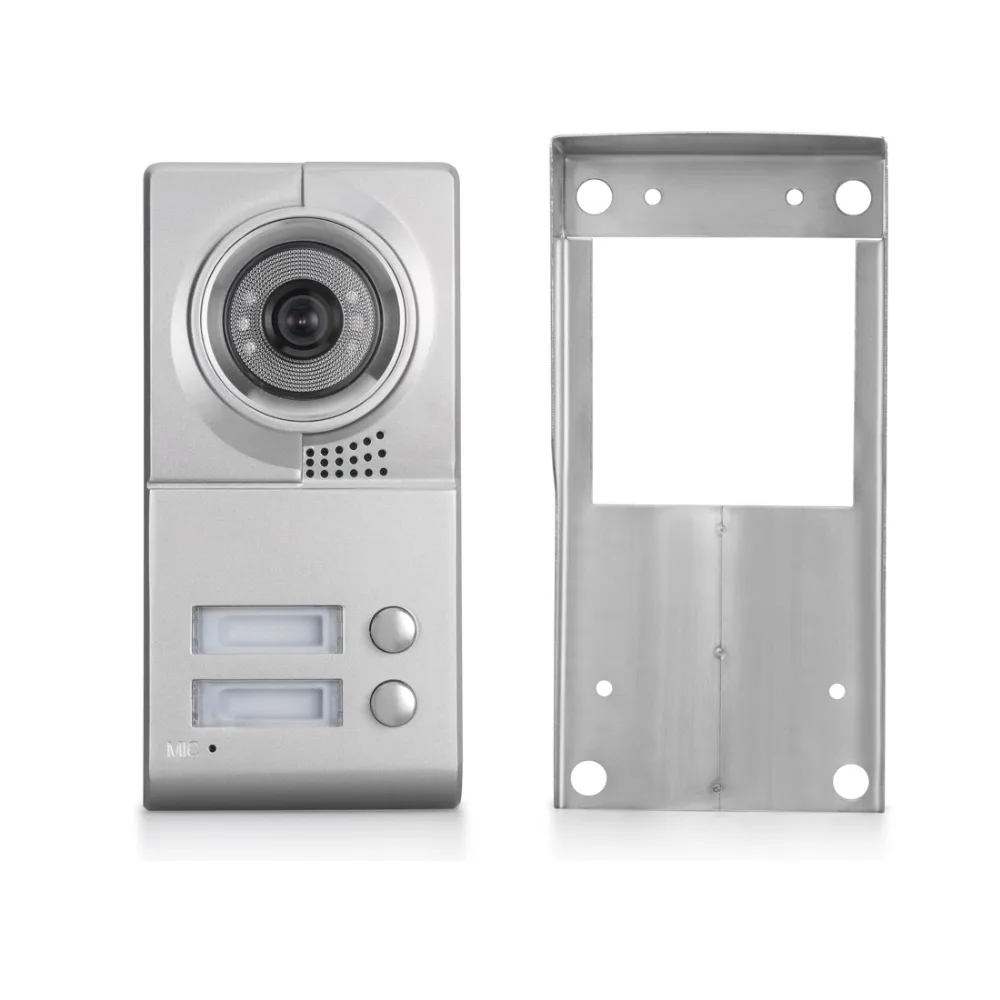

1 * Outdoor camera

2 * Indoor monitor

2 * AC adapter

1 * 5m 4-core Connection cable

1 *Electric lock

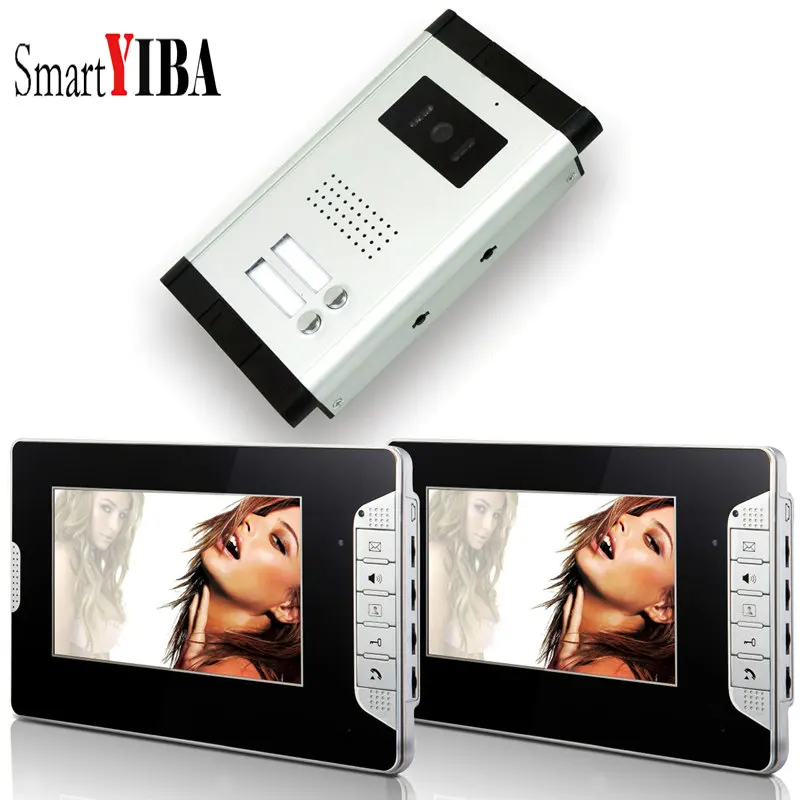

B KIT

1 * Outdoor camera

2 * Indoor monitor(black)

2 * AC adapter

1 * 5m 4-core Connection cable

C KIT

1 * Outdoor camera

2 * Indoor monitor

2 * AC adapter

1 * 5m 4-core Connection cable

D KIT：

1 * Outdoor camera（A button）

1 * Indoor monitor

1 * AC adapter

1 * 5m 4-core Connection cable

E KIT

1 * Outdoor camera

2 * Indoor monitor

2 * AC adapter

1 * 5m 4-core Connection cable



F KIT

1 * Outdoor camera

2 * Indoor monitor

2 * AC adapter

1 * 5m 4-core Connection cable
